Experience the ultimate cutting performance with Reich Mammut 830 Quickstop. Our expert detailing your requirements and shall propose the most suitable model of Reich Bandsaws with or without Quickstop Assistance System. Trust us to make your operators more confident and relaxed working with the Quickstop Assistance System.
Reich Quickstop -The Bandsaw Assistance Sytem for the fast stop of saw blade.
Experience top-class intelligent assistance system that interacts with the hands of operator and ReichQuickstop assistance. Protect the operator with our fast braking system. It stops the saw blade in milliseconds instead of seconds. Minimizing the severity of injury significantly.
ReichQuickstop Bandsaw blade stop in detail

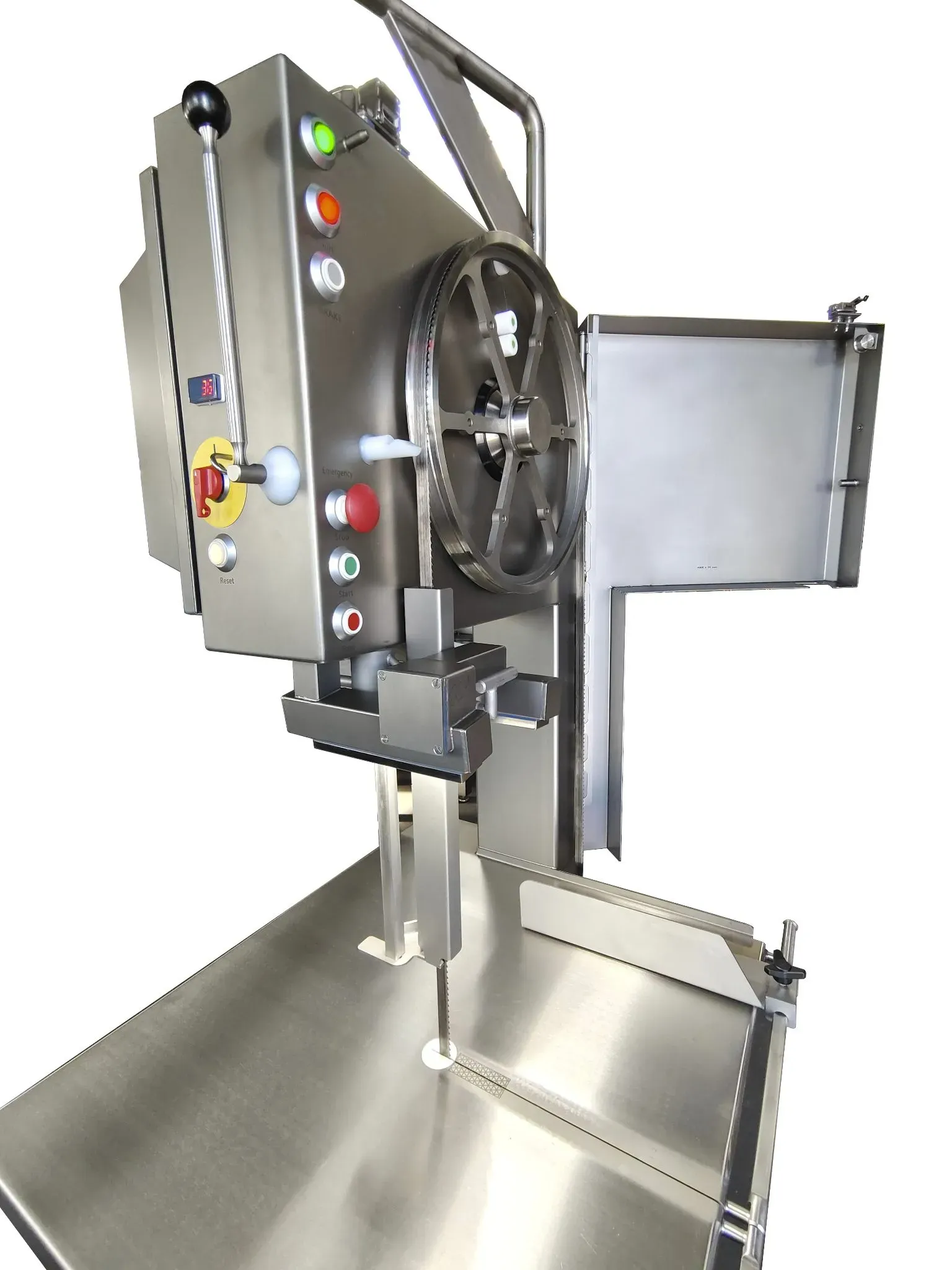

Quickstop Stopping feature #1 Lower the upper deflection wheel
By a special designed mechanism the upper wheel is lowered and the saw blade is without tension. That means the saw blade is without driving force. It can be stopped easily.
Quickstop Stopping feature #2 Two sets of brake moduls
The electro-mechanical driven brake modul activates 2 brake wedges.
The design of the brake wedges and counterparts enable a selfenformment brake function. Even if there is some wear the brke modul is balancing this by itself. Maintaining the powerful stopping of the sawblade.
Quickstop Stopping feature #3 Camera supervises specific area

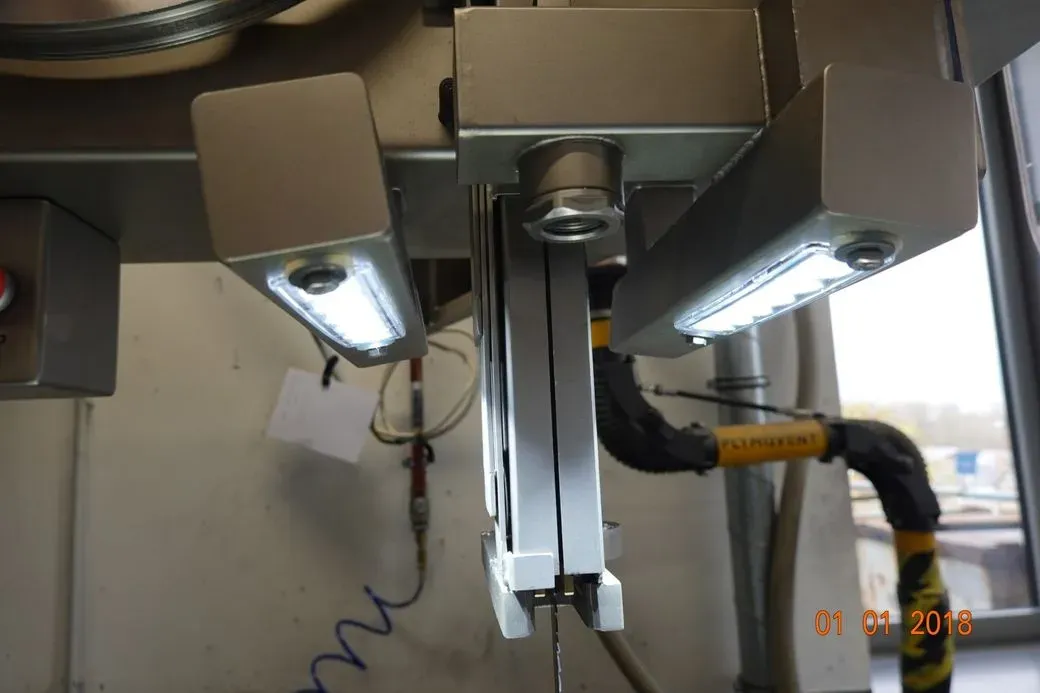

The fully encapsulated high speed camera superwises the critical area.
The high speed camera is programmed to a Area of interest. Furthermore the software is evaluating the pictures taken. If there is a spot identified with the same color as preset the camera and software trigger the brake unit.
Quickstop Stopping feature #4 Conductive gloves.
Main purpose is to activate the Quickstop bacause the hand is hiddden.

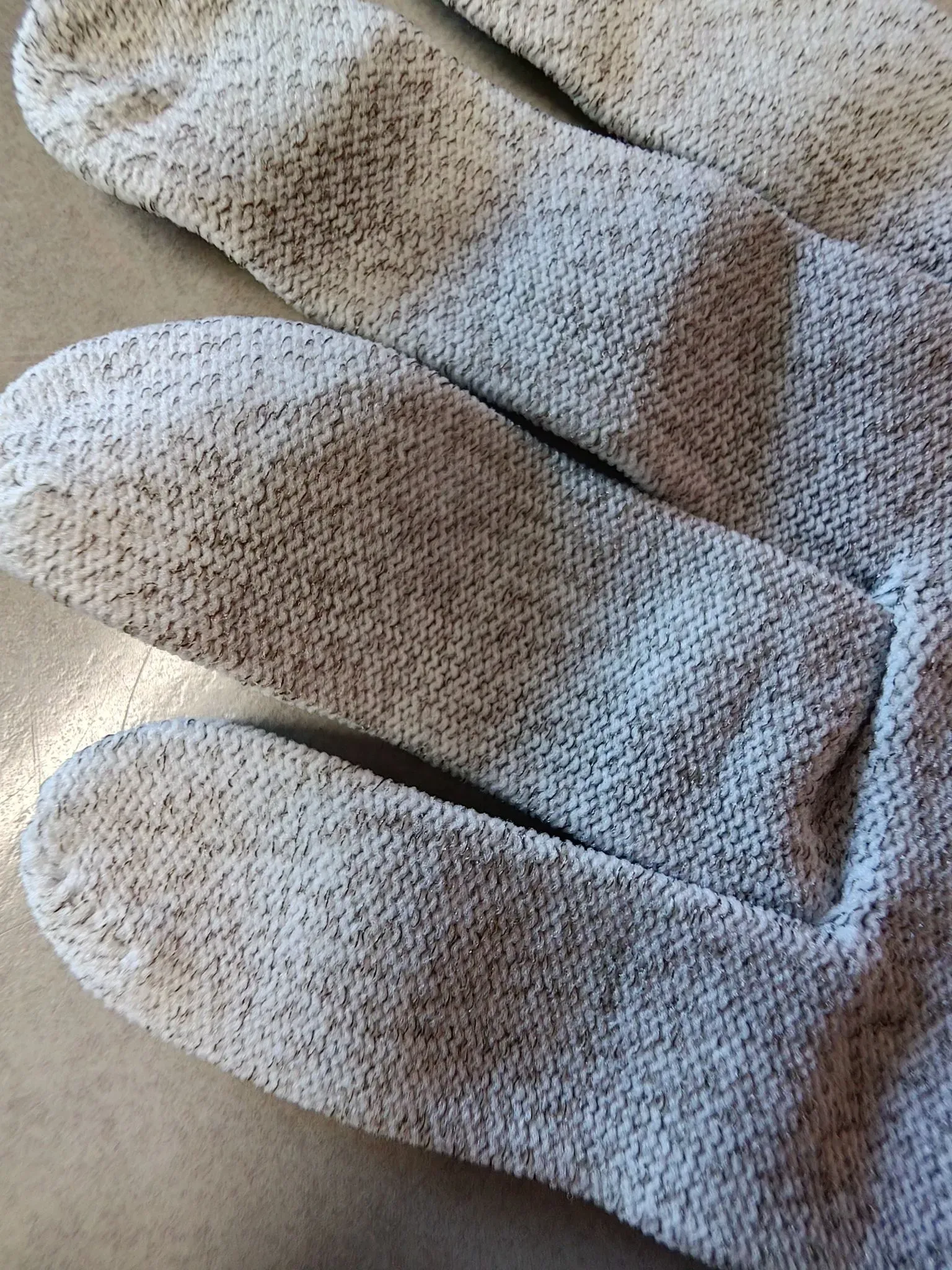

It could happen that the hand of operator is covered by the product to be cut. Th camera won´t be able to detect the glove. The operator wears on each hand a conductive glove. Each glove is connected to the evaluation unit by means of two wires. If one wire is not connected the machine won´t start or in case the machine is running a Quickstop is activated. In the worse scenario the glove is touching the saw blade while machine is running. In this situation a ultra fast stop is vital. However a injury cannot fully avoided as the Quickstop system needs milliseconds of time to be activated.
Gallery
Protect your employees, raise your company.
Make use of our new technical achiements.
Place your inquiry today.
ReichQuickstopg Sawing Excellence
Reich Quickstop Experience in Action

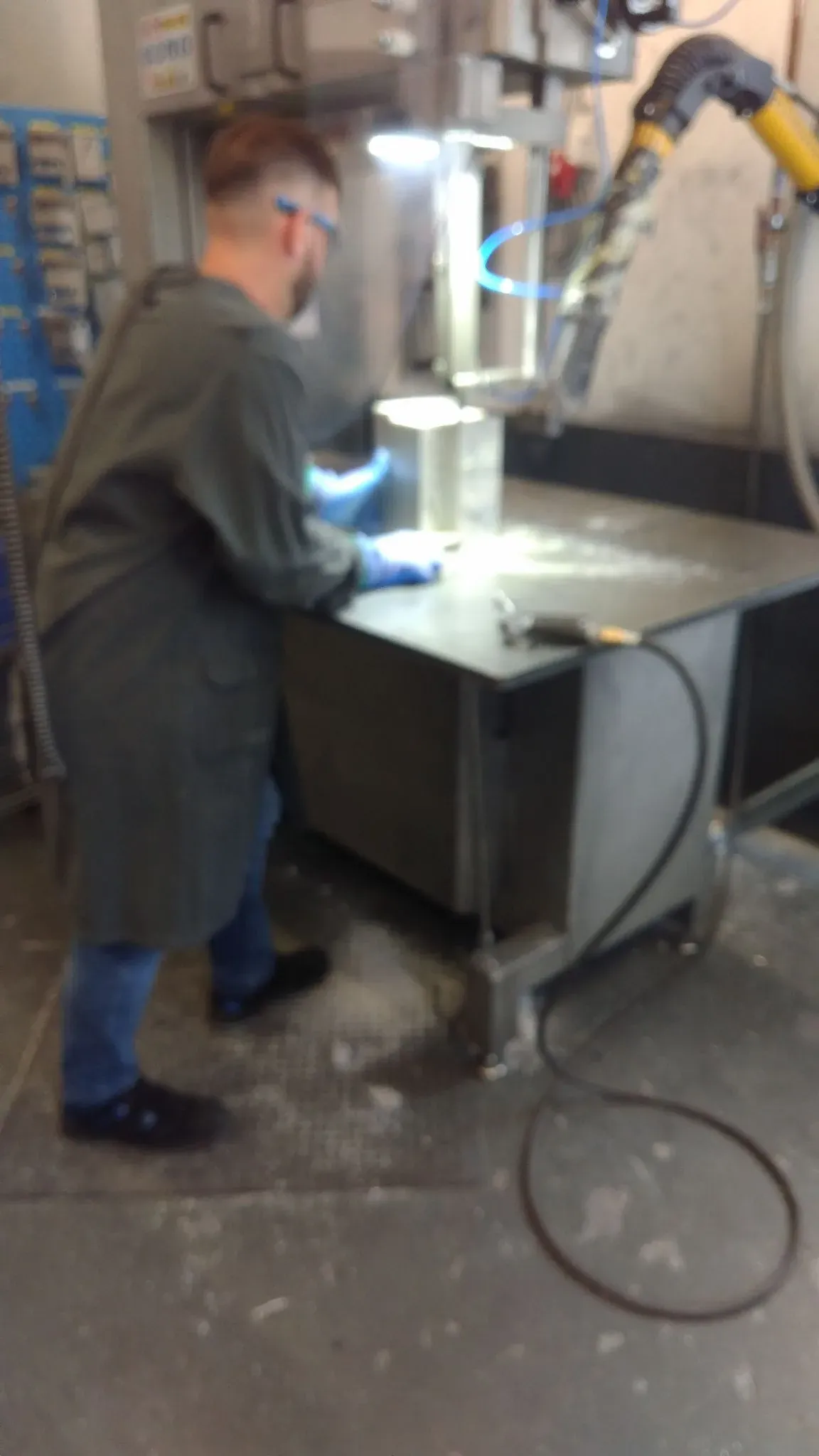

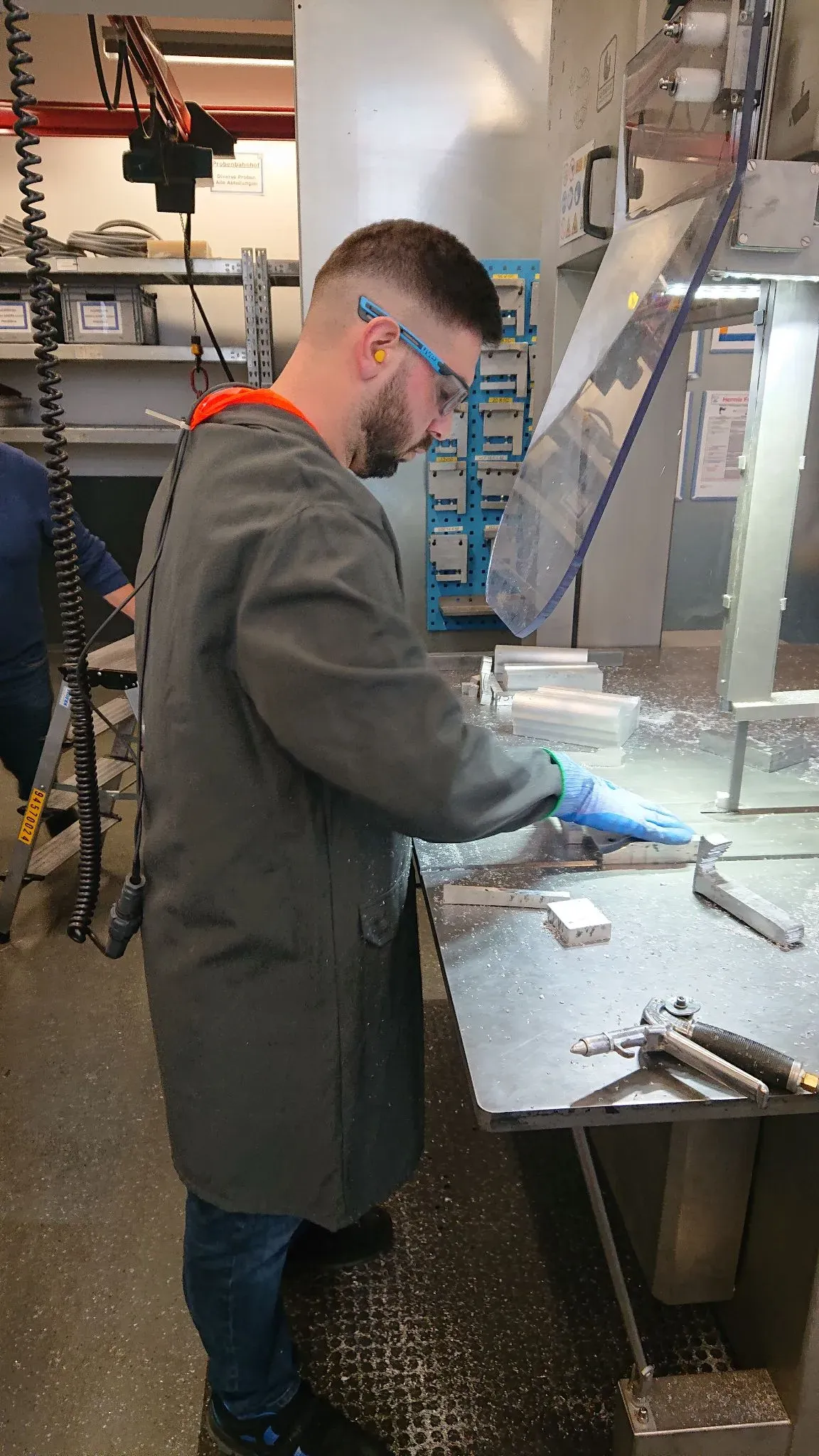

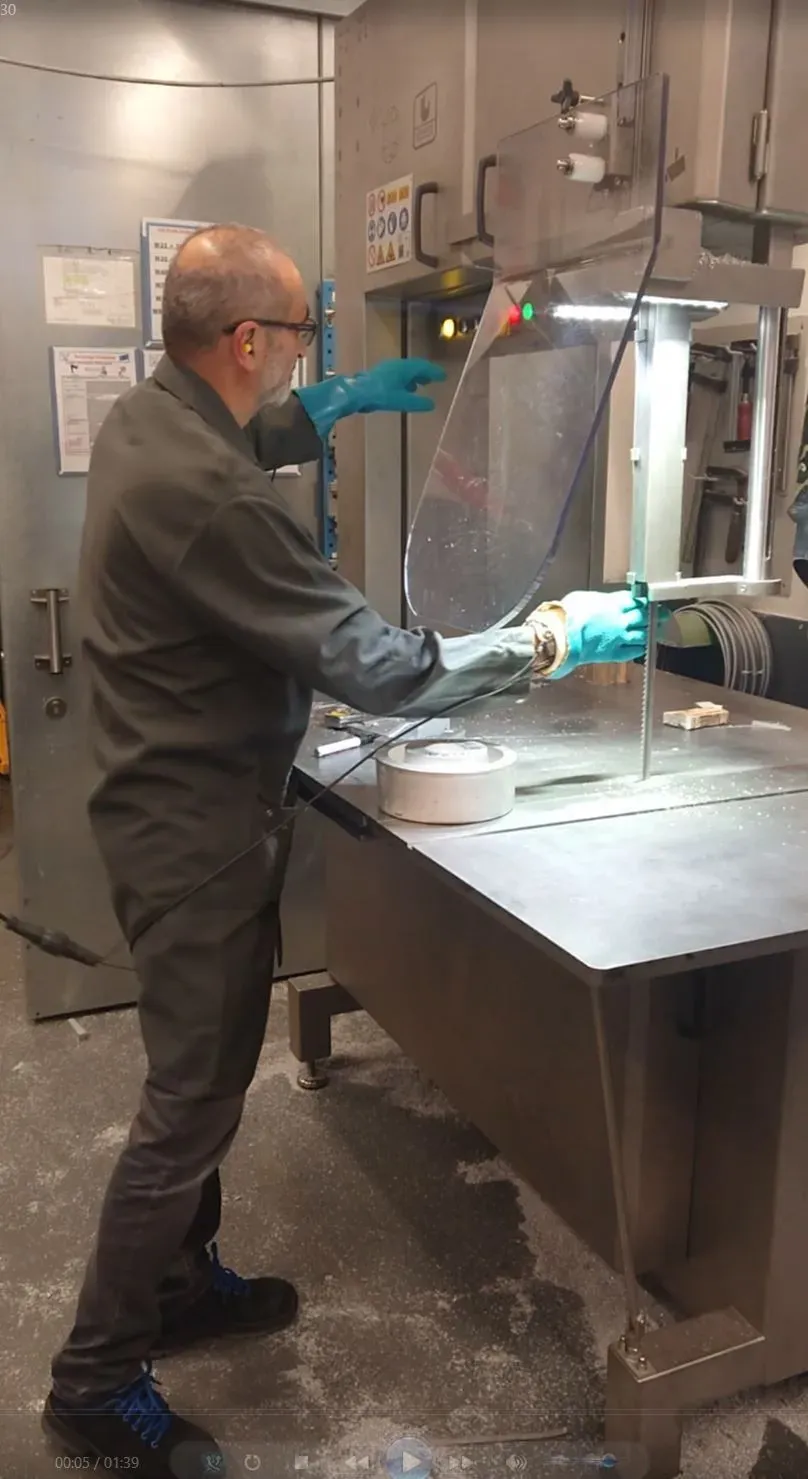

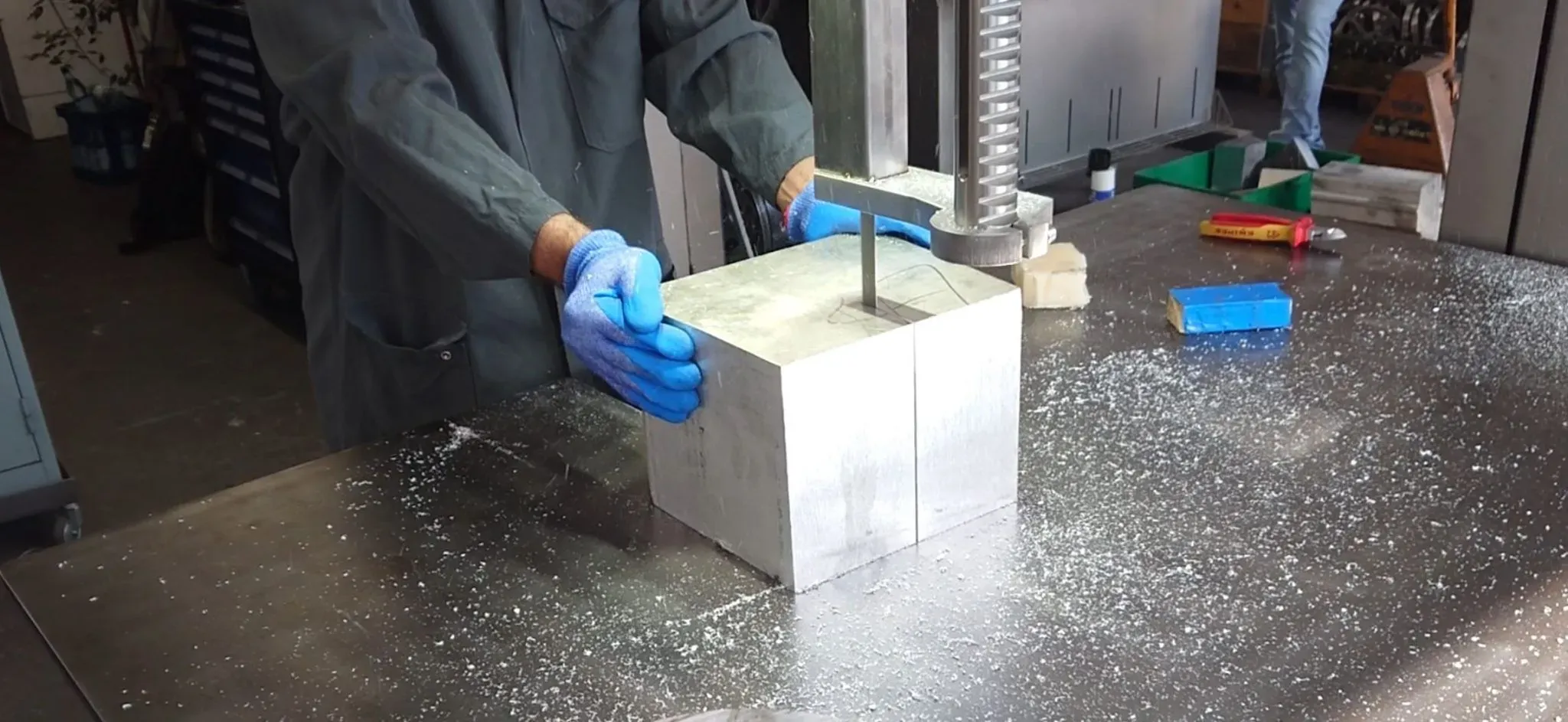

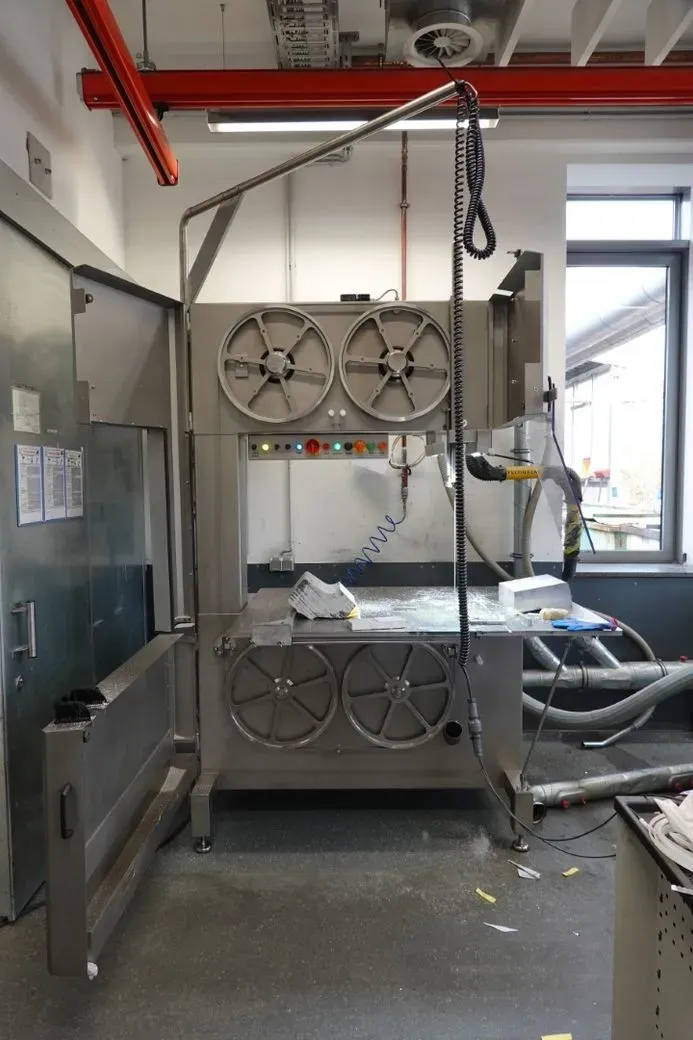

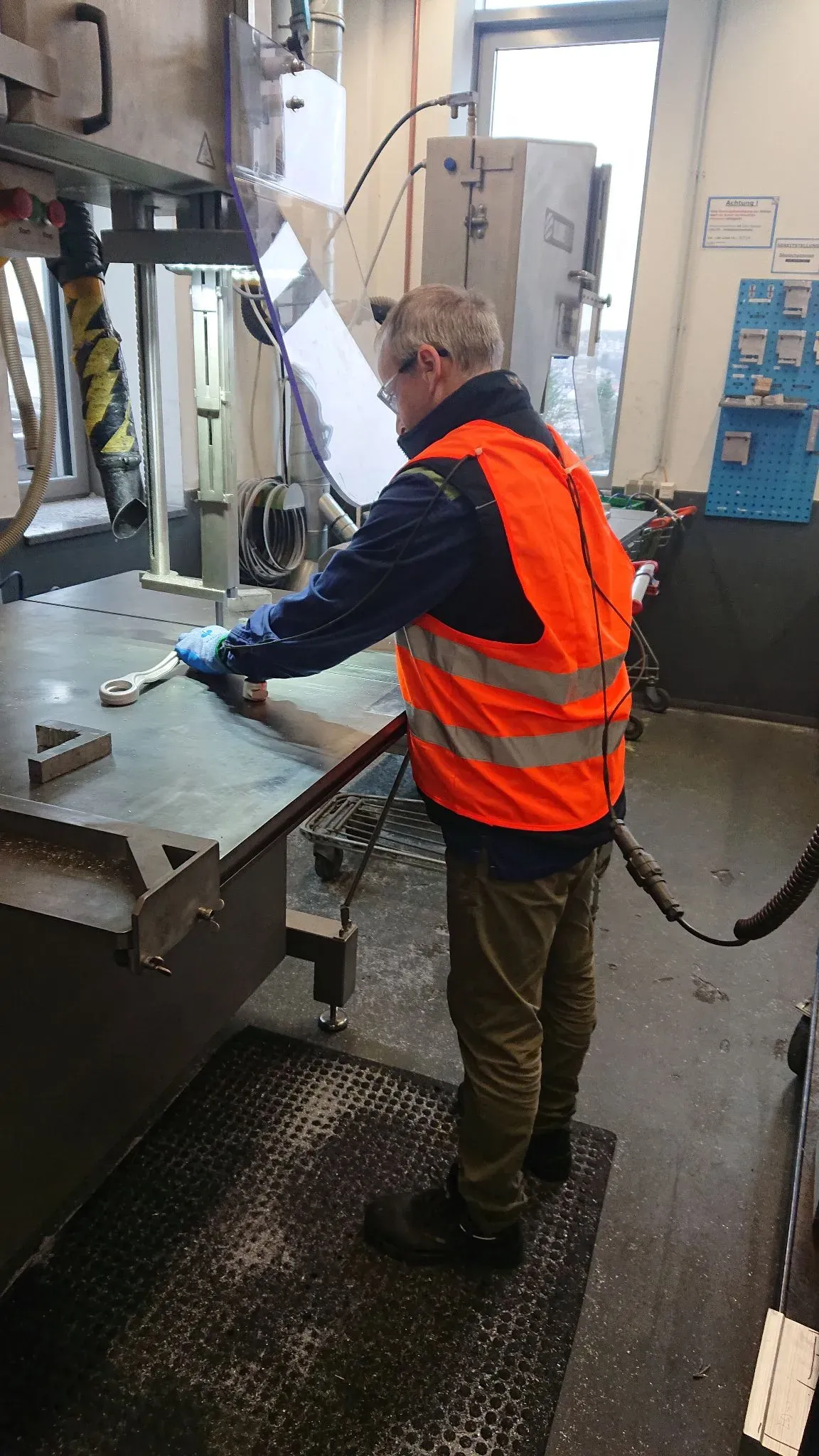

In a laboratory various pieces are cut made out of Aluminium. This needs precise cutting and at the same time an assistance system, which is able to stop the saw blade in Milliseconds. That’s why the operator wears two conductive gloves. These gloves are connected with the machine and electronic unit with cables. The gloves act like Emergency-Stop-Buttons. In the moment one of the gloves touches the saw blade the Quicskstop is trigged. The Quickstop has a separate braking system which clamps the saw blade and stops the saw blade.

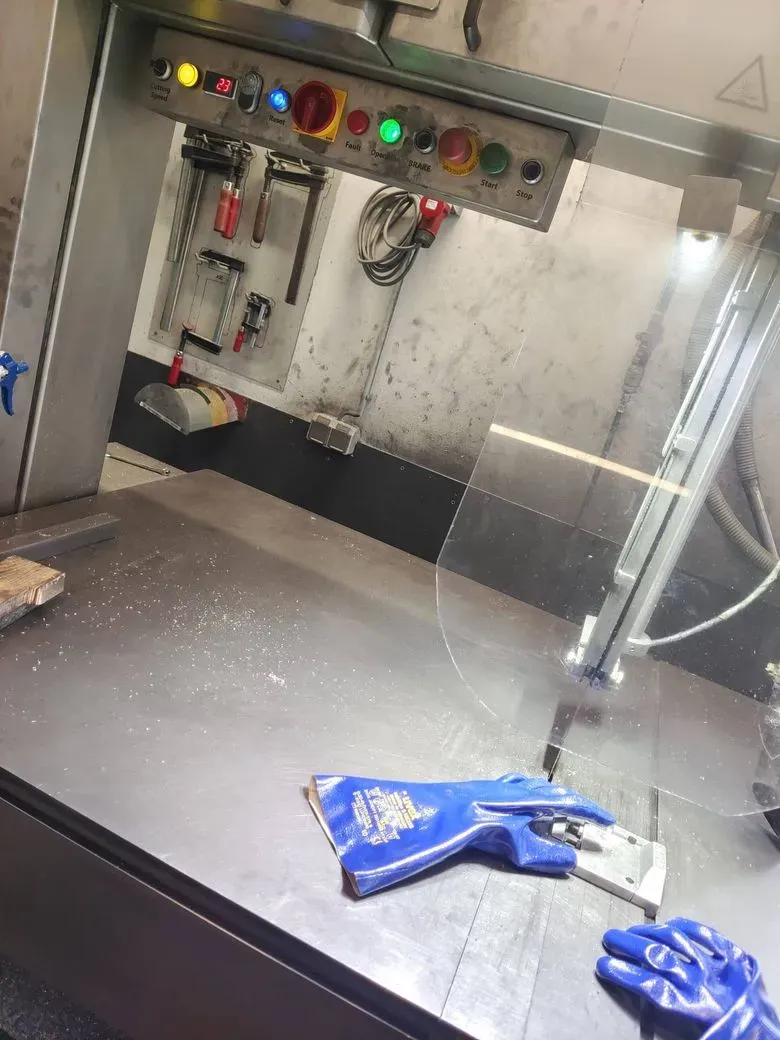

The second feature is the blue colored glove (any other color can be defined). A ultra fast camera is supervising a specific area in front of the saw blade. Is there a small section of the glove detected the Quickstop is triggered and an injury is most likely avoided.
Experience Excellence with Reich Quickstop Assistance System
Expertise You Can Trust
At Reich Quickstop, we pride ourselves on delivering top-quality bandsaws with or without Quickstop Assistance system with unmatched expertise. Our team of skilled professionals is dedicated to nmanufacture your machine with advanced techniques and premium components. With 40 years of experience in the industry, we understand the unique needs of every cutomer, ensuring meticulous attention to detail that guarantees customer satisfaction.
Comprehensive Services
We offer a wide range of band saw designed to meet all of your needs.
Reich Quickstop puts you in another level of operation. The operators gain more confidence into the work with the band saw. Severe injuries are prevented. Each machine is tailored to enhance your productivity and maintain the performance over the time of 20 years and more.
