ACU-TERA™ Foundation Bolt Tensioners Overview

ACU-TERA™ foundation bolt tensioners from ACUTENSION leverage extensive engineering and user experience to provide one of the fastest and most user-friendly solutions for foundation bolting applications. They are designed for maximum efficiency, ergonomic handling, and versatility in challenging job site conditions.

• No faster tensioner on the market in dual-acting configuration, enabling rapid actuation and retraction cycles for high productivity during bolt tensioning.

• Available with puller, solid, or split reaction nuts to suit various installation requirements.

• Configurable with a classic tommy bar or a gear-driven socket drive for operator preference and convenience.

• Long stroke capability ensures compatibility with a broader range of foundation bolts and reduces the need for frequent repositioning.

• Options incorporating aluminum construction provide ease of handling, transportation, and use on-site—without sacrificing durability.

• Features such as a lifting/carrying handle and optimized grip points ensure comfort and safety during repetitive operations.

• An automatic misalignment spherical reaction seat is available where required, allowing the tensioner to self-align under load and minimize side forces.

• Tight clearance or elliptical-shaped tooling options make ACU-TERA™ suitable for confined or limited-access environments.

While ACU-TERA™ sets the benchmark in foundation bolt tensioning, the ACU-BREEZE™ model offers even faster operation through the use of power hydraulics for both advance and retract phases.

ACU-BREEZE™ also has fewer static and moving parts, making it simple and quick to maintain, while still ensuring high durability and fatigue life. This makes it an optimal choice for clients needing the fastest tensioning/reset cycles and straightforward servicing.

Wind Turbine Tensioners with Data Collection

TORQUE WRENCH SYSTEMS INC.

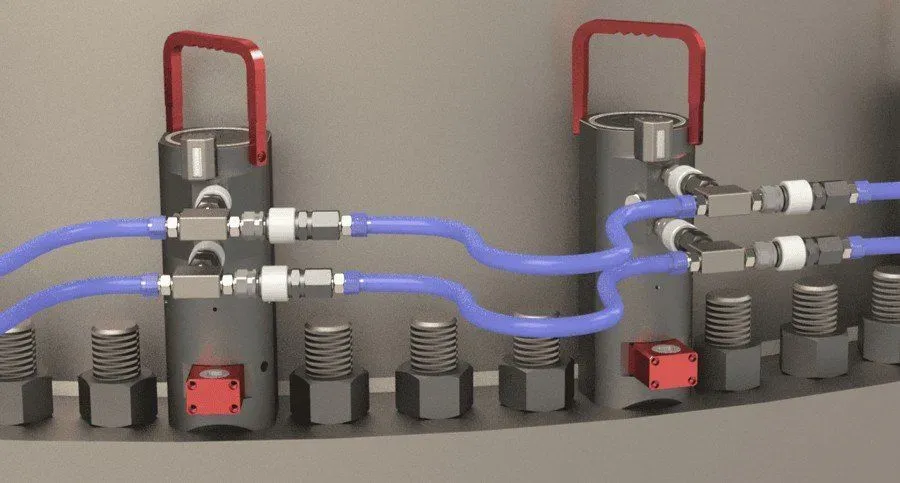

Our ACU-BREEZE tensioner is a single & dual acting system with super fast retraction – saving both time and effort.  The direct fit design is a single acting tool that requires manual retraction once maximum stroke has been reached.

On a full circuit of tools the ACU-BREEZE would be automatically retracted simultaneously hydraulically or by springs assistance.

The ACU-BREEZE is a slimline tower design to suit most narrow wind turbine applications at a working pressure of 150 MPa.

The DF is also a compact design to suit majority of applications but working pressure is much higher at 227.5 MPa. Pressurizing the system to a lower pressure rating is much quicker than pressurizing at a higher pressure especially when doing multiple tools simultaneously.

The ACU-BREEZE tool has a number of safety features to protect the user from stud failure, puller failure, seal failure or even misuse.

The ACU-BREEZE tool has a positive stop so if accidentally over-stroked the tool can react within itself up to working pressure without any issues. If any sort of puller failure the puller is captivated with the tool.

Any seal failure will result in the tool leaking internally protecting the user from any high pressure external oil projectiles.

The DF tool has inner seal blow so it does also fail safe when seals fails.

The DF tools are designed around the application to be made safe.

The ACU-BREEZE tooling is made to be as lightweight as possible so its not so much of a strain on the operators to install/uninstall.
