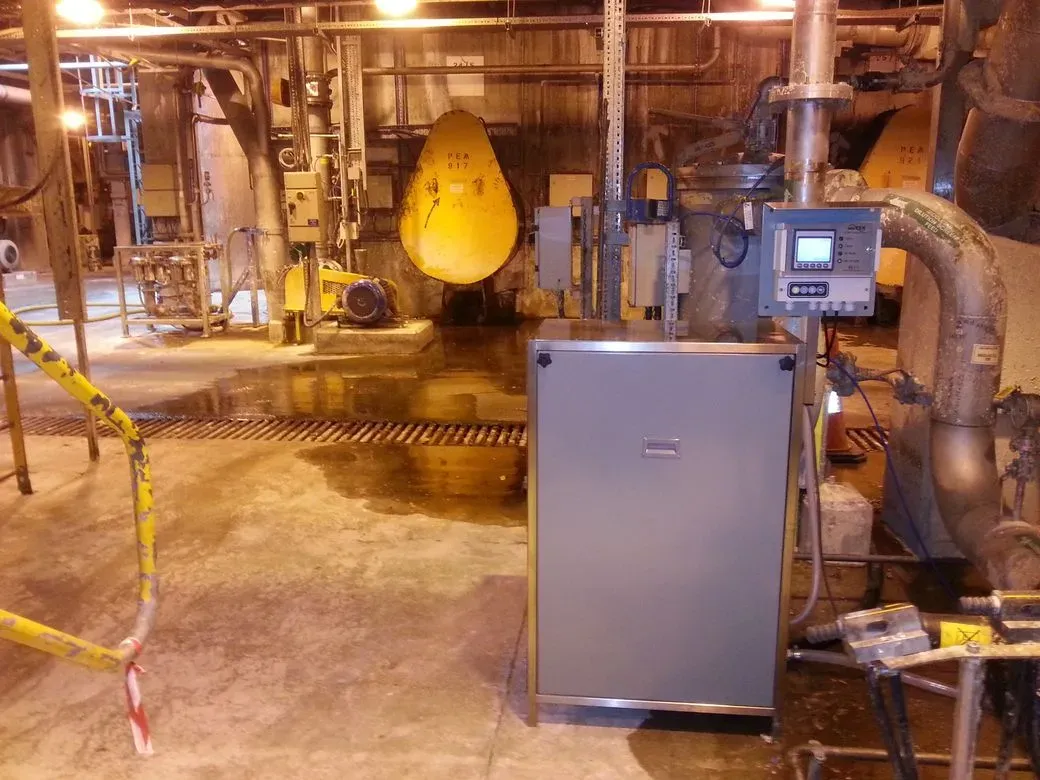

On-line CD titration system:

• Core Function: Real-time, sequenced online dissolved streaming current measurement featuring automatic titration for charge demand and a flush-cleaning cycle.

• Design & Maintenance: Modular construction enables easy servicing and individual parts replacement.

• Calibration Method: Utilizes a zero-point test combined with titrant concentration adjustments.

• Operational Efficiency: Requires a minimal service interval of once per month for cleaning and titrant refilling, maximizing continuous measurement uptime.

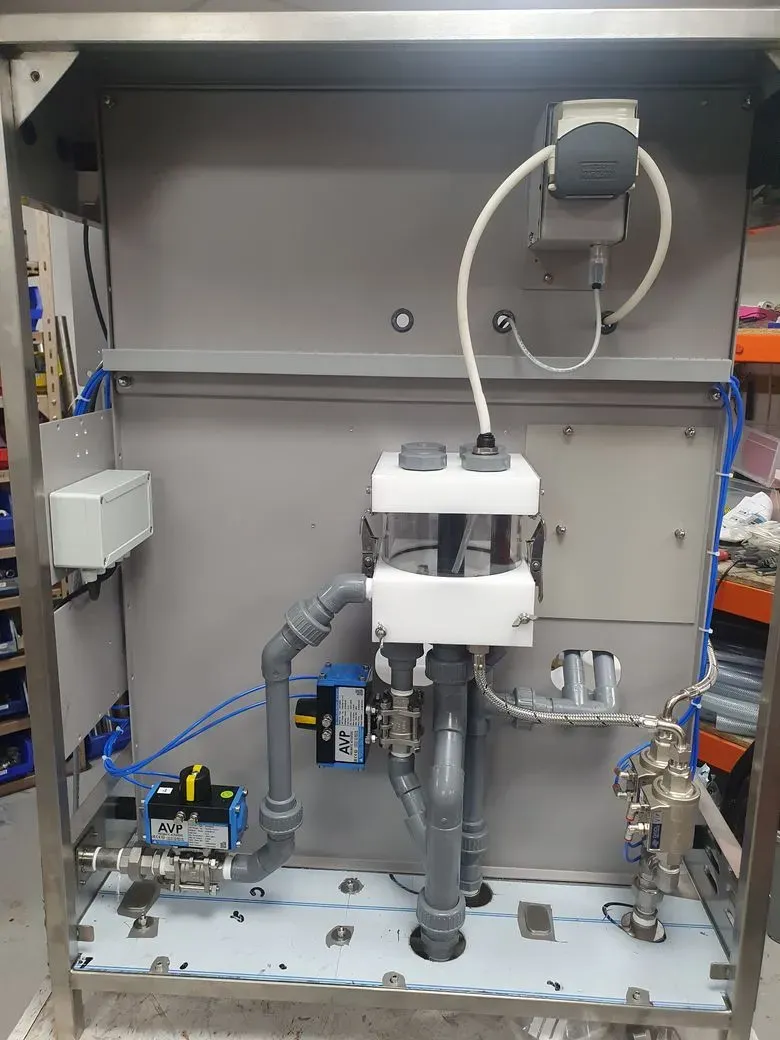

Sample Separator Vessel

• Receipt & Overflow: Accepts the incoming process sample and safely diverts any excess volume to a drain.

• Settling Phase: A timer pauses the process sample flow to allow it to separate into distinct layers.

• Transfer: A transfer pump draws the clarified sample out of the vessel and into the reactor.

• Cleaning: Along with auto-flushing the vessel is easily opened to clean and service.

• Process Measurements:

  The vessel mounts:

• pH probe (pH4 to 10)

• ORP/Redox (-1,250mv to 1,250mv)

• Conducivity - Toroidal (0 to 10,000 uSM)

• Consistency/Solids (0 to 0.5%Cs/5,000mg/L) Polarized.

Consistency/Solids Sensors

• Polarized Optics: Compensation for changing filler or fines content as well as grade specific calibration

• Auto-Cleaning Cleaning by actuated flush or brush

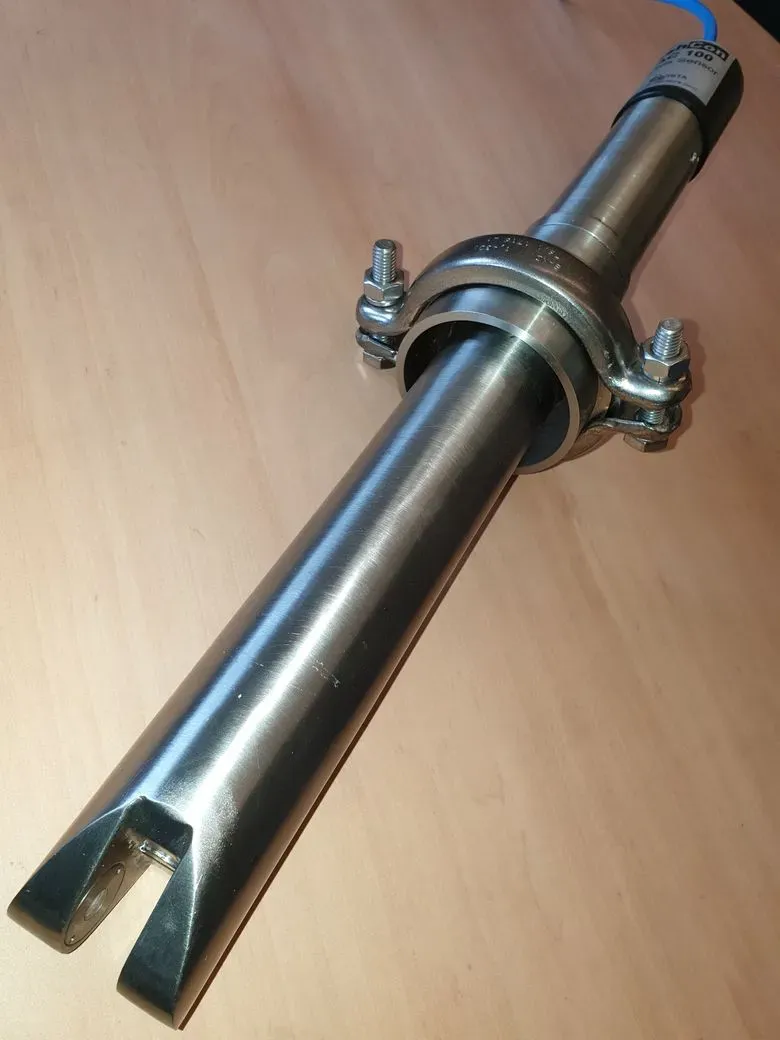

• Immersion probe Rod-type sensor with custom mounting typically used to measure drain solids losses

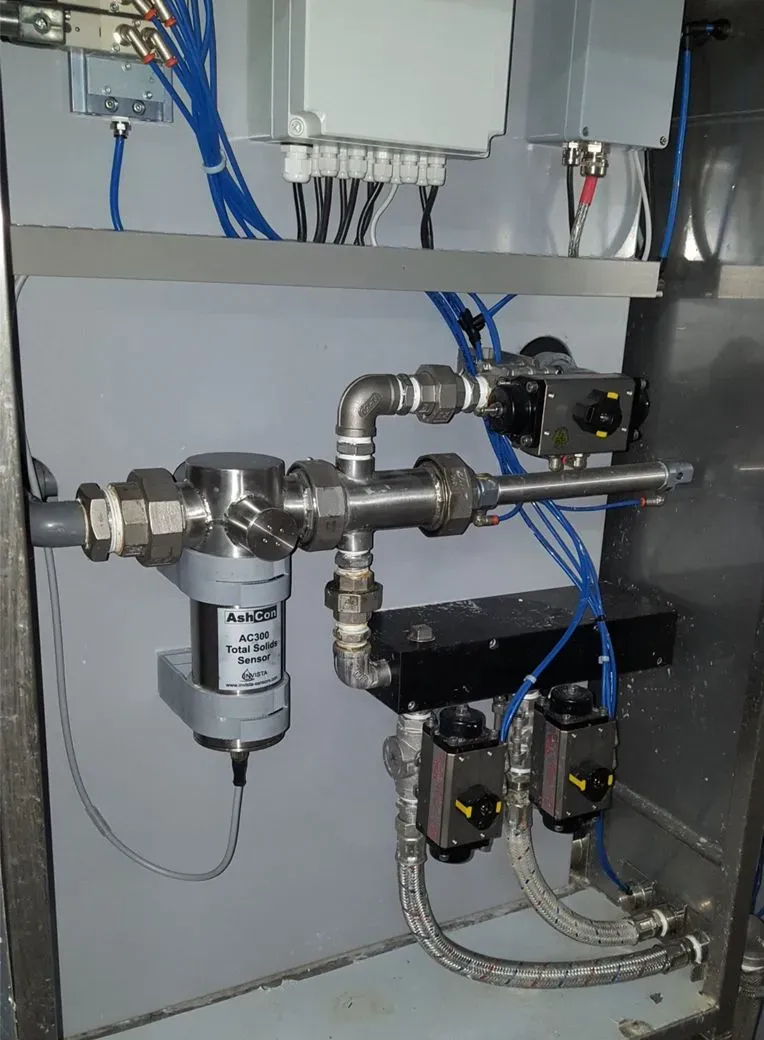

• Bypass probe Diverted sample flow through the sensor with flush and actuated brush cleaner.

• Insertion probe Direct mount into a vessel or process line with flush cleaning.

• Optical Measurement Typical optics of; 5 15, 20 and 40mm from higher consistency to ultra-low solids

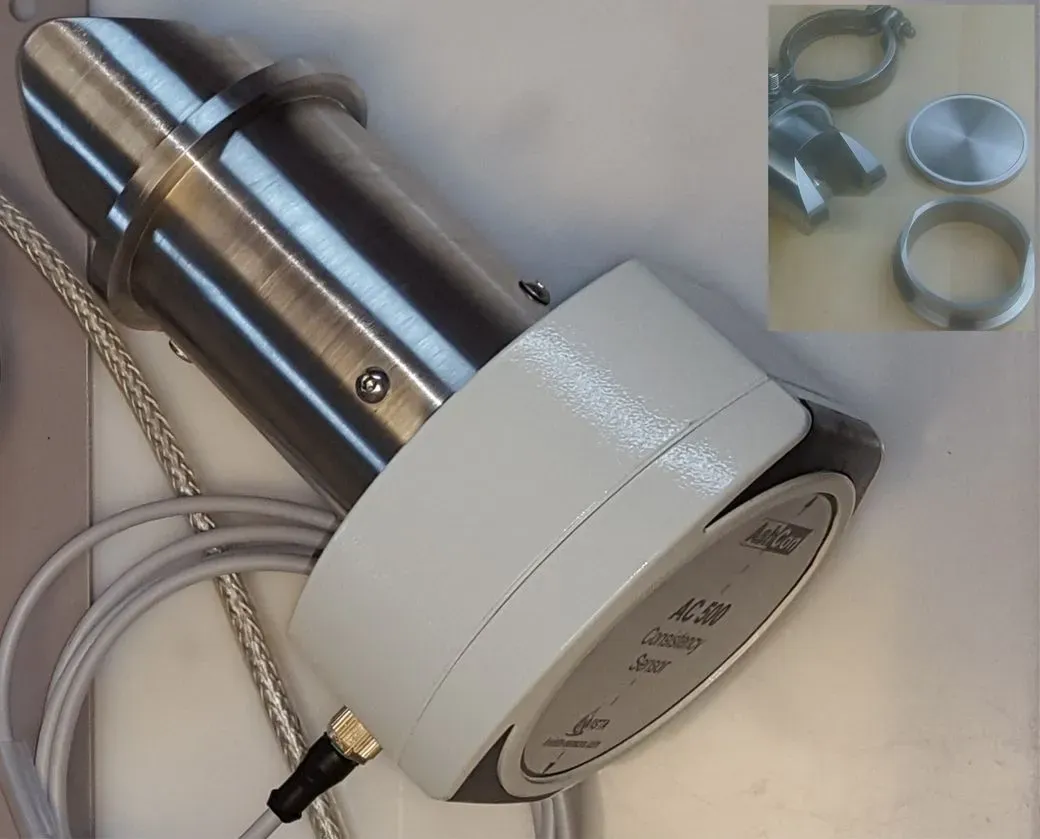

Bypass flow polarized optical transmission sensor with cleaning and optional multi-sample connections.

In-line mounted consistency sensor (1 - 6%Cs) for thickstock applications. Use of an industry standard mounting clamp and an internal water flush channel

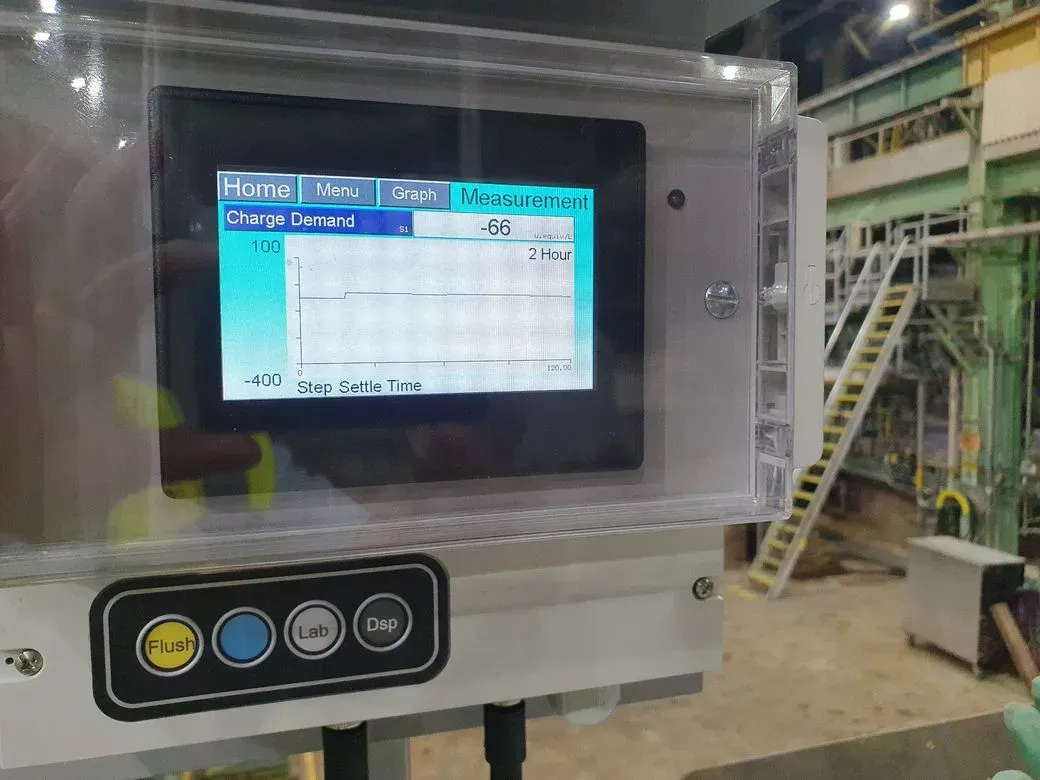

Touch color display with built-in controller to run ; measurement sequences, control logic, sensor measurement interface, analog signal ouput as well as comms to mill DCS
