Osprey Systems Engineering Ltd (OSE) is an engineering and manufacturing business, Located in West Cumbria, United Kingdom. OSE specialises in robotics and communication infrastructure to facilitate remote survey and inspection tasks in hazardous environments.

Mobile Robotics for Extreme Environments

Real time, live sonar imaging in GPS denied conditions

Real Time Sonar imaging

IP67 rated geospatial mapping, designed to be integrated onto third party platforms or operated as a standalone device

Maximum Coverage Robotic Survey (MCRS) software package, intended to support probabilistic routine or first look surveys of both land and aquatic environments

IP66 rated, 36 hour battery runtime, modular platform designed to carry sensors and instrumentation into hazardous environments

Equipment designed around supporting a Rajant Mesh Network, for adhoc or semi permanent installation. Both robot mounted and breadcrumb.

Please contact for more information

Printing an electronic connector with a Creality K1 Max 3D printer

FDM 3D Printing, CNC and Laser Cutting service

Products

Gallery

Relaxing form the heart of the desert ️⛰️

Lime electric scooter abandoned in a train station in central Lisbon, Portugal. Photograph by Mark Stuckey.

Sand Dunes Buggy by Adyant Pankaj (The Lego Lad)

https://www.youtube.com/c/adyantpankaj

Morning photo staff to create new footages. Nomade life with MacBook and Film Camera

Mechanical engineers develop sustainable agricultural robotics

Contact Us

The real-time sonar (RTSonar) mapping system is a GPS-denied underwater survey solution developed for integration with Unmanned Surface Vehicles (USVs), but also available as a standalone sensor system for third party integration.Designed specifically for nuclear decommissioning and confined-water environments, the system utilises multi beam sonar technology to produce continuous, geospatially referenced 3D models of the subsurface environment.The RTSonar enables accurate mapping in indoor or enclosed ponds where conventional hydrographic methods fail. The software and hardware integration allow for live point cloud generation of both the above water and subsurface environments, precise vehicle pose estimation, and seamless data stitching, providing operators with high-resolution models of underwater structures and debris.This technology enhances situational awareness, reduces survey time, and supports safe, remote characterisation of contaminated or complex aquatic environments within the nuclear and environmental monitoring sectors.Specifications:Bellow Water Mapping - Sonar max depth: 350 m - Operating frequency: 400 kHz (&gt; 30 m) 700 kHz (&lt; 30 m) - Range resolution: &lt; 8 mm - Max range: 100 m @ 400 kHz / 30 m @ 700 kHz - Min range: &lt; 0.2 m - Max update rate: 25 Hz - FoV: 120° / 20° - 256 beams - Angular resolution 1.5° - 0.47° beam separation - Operational temp: 0 °C to +35 °C - Construction Material: Titanium and Delrin - RTSonar data output: .CSV point cloud- raw sonar returns file and highest intensity on swath file, as well as live output through ROSAbove Water Mapping - Range: 40 m @ 10% reflectivity, 70 m @ 80% reflectivity - Precision: &lt; 20 mm @ 10 m, &lt; 0.15° - Wavelength: 905 nm / class 1 laser - FoV: 360° pan / -7.52° tilt - Operating temp: -20° C to +55° C - Point rate: 200k points per second (first return) - IP rating: IP67 - Max singular survey: 2 hours - TF update rate: 15-100 Hz (default 50 Hz) - Point cloud output: Live PointCloud2 output (ROS / Foxglove) and .pcd outputUSV - Endurance (1 m/s): 18 hours operational time (standard battery) - Max speed: 3 m/s (6 kts) - Steering type: Differential thrust - Payload capacity: 15 Kg (including batteries, 13 Kg excluding) - Payload power: 14.8 / 22.2 V nominal, 60 A (direct), 10 A (fused), 5 V, 5 A fused - Interfaces: 10/100 Mbit Ethernet via built in switch, USB2.0, USB3.0 - Dimensions: 120 / 93 / 46 cm (deployed), 120 / 93 / 24 cm (stowed) - Mass: 16 Kg - Software: ArduRover / BlueOS (flight computer), Debian (payload computer) - Mission planning software: QgroundControl / ROS - Navigation: Manual (joystick), waypoint based / click to nav / position hold / RTS (GPS fix required), auto survey (MCRS GPS denied autonomy – user defines survey outline perimeter) - Communications: Long range WiFi (~200 m) / Rajant mesh radio system (unlimited depending on mesh node deployment) / Cellular (unlimited) / Satellite (unlimited)

Real Time Sonar

GeoMapper was developed in an effort to provide a low cost, robust, GPS denied positioning and geospatial mapping system that was IP67 rated from the onset.GeoMapper is available in two versions:Standalone - LiDAR head and compute unit designed to be used on its own or mounted to third party platforms, capable of powering Rajant mesh devices, and powering / interfacing with third party sensors. Users can add custom software to the compute unit using docker and the portainer interface. OEM - LiDAR head and dockerised GeoMapper software image intended for 3rd party integration.Both systems provide a high frequency TF position output, and real time point cloud stream for both mapping and localisation.GeoMapper utilises ROS to provide it’s real time output, but also produces .PCD point clouds for offline analysis.Specifications:SLAM - Max run time 2 hours + - TF update rate: 15 – 100 Hz (default 50 Hz) - Point cloud output: Live PointCloud2 output (ROS / Foxglove) and .pcd output - Position uncertainty: ~1.5mm XYZLIDAR - Range: 40 m @ 10% reflectivity, 70 m @ 80% reflectivity - Precision: &lt; 20 mm @ 10 m, &lt; 0.15 degree - Wavelength: 905 nm / Class 1 - FoV: 360° pan, -7.52° tilt - Point rate: 200k points per second (first return)Electrical - Power requirements (Standalone): 12-24 V, 25 W peak, 8 W steady state - Power requirements (OEM): 12-24 V, 15 W peak, 5 W steady state - Standalone ships 36 Wh battery, giving 4 hours run timeNetworking - 10/100 Ethernet - Standalone is capable of powering and communicating with Rajant Cardinal / Rajant ES1Environmental - Max observed temp (Standalone): 58.2 degrees C. Tested with no passive cooling only, 1 hour duration - Operating temperature: -20° + 55° C - IP67 ratedMiscellaneous - Portainer and CLI Docker compose accessible via WiFi AP or Rajant / Ethernet port - Standalone features USB2 host - GeoMapper software resource usage: 38% CPU usage, 5.6GB. Tested over 1 hour - OEM software consists of a docker image and applicable compose file for user integration

The Maximum Coverage Robotic Survey (MCRS) software package is an advanced autonomous survey system designed to deliver complete, repeatable, and verifiable coverage of complex environments.Developed for use in nuclear decommissioning and other hazardous industries, MCRS enables robotic systems to automatically generate and execute deterministic survey paths based on user-defined resolution and sensor geometry.The software optimises route planning to maximise coverage, manage error recovery, and ensure consistent data acquisition across repeated missions. By removing the need for manual waypoint generation and operator-intensive oversight, MCRS significantly reduces survey time and operator cognitive load, while improving accuracy and reliability.Designed to integrate with a wide range of ground and marine robotic platforms, the package includes modules for mission planning, live data visualisation, and performance validation, providing a complete solution for autonomous environmental mapping, inspection, and radiometric data collection in safety-critical settings.Specifications:Software - Dockerised container containing MCRS package - Can be installed and interfaced with using easy to use Portainer UIUsage - Operator drives robot around perimeter of servayable area, and perimeter of any obstacles - MCRS autonomy triggered, robot will survey environment autonomouslyMiscellaneous - Compatible with OSE GeoMapper and Leica BLKARC geospatial scanners - Designed around OSE UGV (Unmanned Ground Vehicle), and OSE USV (Unmanned Surface Vessel) but compatible with any ground robot platform - Survey resolution can be adjusted based on user preference - Surveys are repeatable, enabling condition monitoring - Robust and error tolerant software

MCRS - Maximum Coverage Robotic Survey

The UGV is a small, low cost, versatile robotics platform intended to carry various sensor payloads in remote, extreme environments.Designed to be payload agnostic, with a long battery life, the UGV is ideally suited to long duration survey missions.Specifications:Mechanical - 41 mm ground clearance - 377 X 437 X 158 mm (width, length, height) - Maximum payload capacity of 10 Kg - Minimum speed of 20 mm / s - Maximum speed of 1000 mm / s - Brushless DC motors 19 Kg.cm torque per corner - Independent corner, PID controlled 4WD system (all 4 wheels have their own drive system)Electrical - 310 Wh battery, giving up to 36 hours operation in situ, in standby mode - Optional 570 Wh long range battery, giving up to 3 days in situ, in standby modeNetworking and I/O available to user - 2x 10/100 Passive power over ethernet, one always on for external Rajant Cardinal / ES1 - 2x USB2.0 - 2x 16.8 V power output (on my default, controlled through application) - Internal USB3.0Environmental - Operating temperature: -20 + 40° C - IP66 ratedMiscellaneous - Central PoV camera - User controlled, built in lighting system for navigation - ROS1 and ROS2 enabled - Docker and Portainer installed - Internal 512 GB NVME storage drive - Internal A72 quad core compute unit, with 8 GB RAM - Can be fitted with internal Rajant Cardinal, freeing up payload space - Can be fitted with long range WiFi radio (up to 200 m range) - Laptop base station with teleportation application, controlled via XBOX joypad - Optional caterpillar tracks for increased traction - Shipped with hardcase

UGV2 - Unmanned Ground Vehicle 2

OSE offers multiple Rajant mesh radio, and long range wifi radio accessories, for establishing adhoc networks.Breadcrumb PoE SwitchThe breadcrumb PoE Switch (BPS) allows the user to power and network to Rajant mesh radio devices, enabling temporary and semi permanent ad-hoc Rajant mesh networks to be set up in challenging environments.The BPS is designed specifically for the Rajant Cardinal (AG1-5250M), which can be mounted to the device. Other Rajant devices supported.Robot PoE SwitchThe OSE Robot PoE Switch (RPS) - available as a COREIO / EAP2 version or standalone version, allows the user to easily integrate a Rajant Cardinal (AG1-5250M) onto a Boston Dynamics Spot directly, or via a mounted COREIO or EAP2, which is then mounted onto Spot.The RPS provides an easy, neat solution to on robot mesh networking, without taking up additional payload space on the back of the robot.BPS SpecificationsMechanical - 120X70 mm footprint - &lt;100 g mass - Rajant Cardinal (AG1-5250M) mounting points - Mounting hardware, and networking cabling included - PA12 Nylon construction material Electrical - Supplied with 36 Wh USB C PD Powerbank, allowing for up to 16 hours run time - Can operate from any 12V capable USB C PD Powerbank (alternates available on request to facilitate up to 48 hours run time - Can operate from USB C PD AC brick (included) for semi permanent installations Networking - 5 port passive 10/100 Mbit Ethernet switch (4 ports accessible to user for networking devices to Rajant network - Can be daisy chained, to facilitate Rajant setup (one deployment set can support 13 Rajant devices) Environmental - IP54 rated - Easily bagable to support use in environments with adverse weather conditions / airborne contamination - -20 - + 40 °C operational temperature range Miscellaneous - Available as deployment set, consisting of 4x devices with IP66 hard caseRPS SpecificationsMechanical - Rajant Cardinal (AG1-5250M) mounting points - Designed to integrate onto COREIO / EAP2 seamlessly - Mounting hardware, and networking cabling includedElectrical - 12/24 V flying lead to interface to COREIO / EAP2 - 12/24 V DC output for additional payloadsNetworking - 4 port 10/100 Mbit Ethernet switch (3 ports accessible to user for networking devices to Rajant network - Passive PoE output to power and network to Rajant CardinalEnvironmental - IP54 rated - -20 to +55 °C operational temperature range

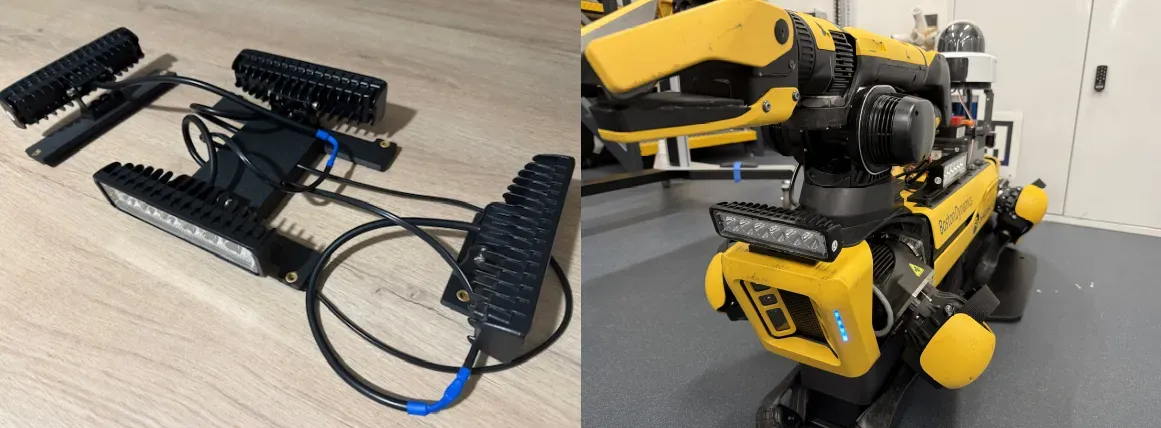

The OSE Robot Lights provide GPIO controllable spot light illumination on 4x faces of any platform they are mounted to.The primary intended platform for Robot Light integration is the Boston Dynamics Spot robot, and thus the mounting brackets are designed with that platform in mind, the mounting and control of the lights is platform agnostic.GPIO based on / off control of the lights can be achieved with Spot COREIO / EAP2, local control box (Ethernet networked, providing a webserver to the user for control) or other 3rd party solution.Specifications:Electrical - Power requirements: 24 V – 0.8 A – 19.2 WMechanical - Designed to be mounted directly to Boston Dynamics Spot robot - Can be mounted to any applicable surfaceEnvironmental - Operating environmental temp -40 - 85 °C - Max observed lamp temp (1 hour test) – 30 °C - Operating temperature: -20 + 55 °C - IP54 ratedInterfacing / Control - Controlled via COREIO / EAP2 GPIO pins - Controlled via webserver through dedicated Ethernet based control box - Controlled through 3rd party GPIO signallingMiscellaneous - 30 ° Spot beam per lamp - 6000K pure white colour - 1600 Lumen brightness per lamp - GPIO controllable
